ESAMBER Process Measurement
Model CBP2000De
CBP2000De Conveyor Performance System
焊炉轨道性能评测系统
CBP2000De measures rail width, parallelism, deformation, level, incline, climb, XYZ vibration and air temperature while the line continues to run. It supports both reflow and wave-solder equipment.
Direct email: sales@tysonsupplychain.com
Key capabilities
- 01No production-line stoppage
- 02±0.2 mm deformation accuracy
- 03±2g XYZ vibration range
- 04Reflow and wave-solder compatibility
Applications
- 01Rail-parallelism verification
- 02Deformation and vibration diagnosis
- 03New-oven acceptance testing
- 04Checks after product or rail-width changes
Technical specifications
- Sampling rate
- 0.05 to 20 s, adjustable
- Deformation range
- 0 to 15 mm
- Deformation accuracy
- ±0.2 mm
- Angle range
- 0 to 20°
- Angle accuracy
- ±0.2°
- Vibration range
- ±2g
- Temperature range
- -50 to 800 ℃
- Temperature accuracy
- ±0.5 ℃
- Heat resistance
- 8 minutes at 300 ℃
- Data storage
- Up to 32 records
- Data interface
- USB Type-C 5V/1A
- OS
- Windows 7 / 10 / 11
Specifications are based on the manufacturer datasheet and may change without notice.

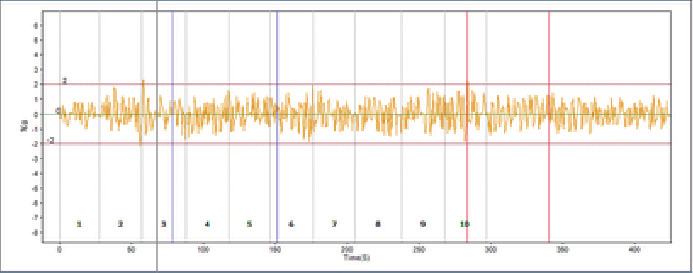

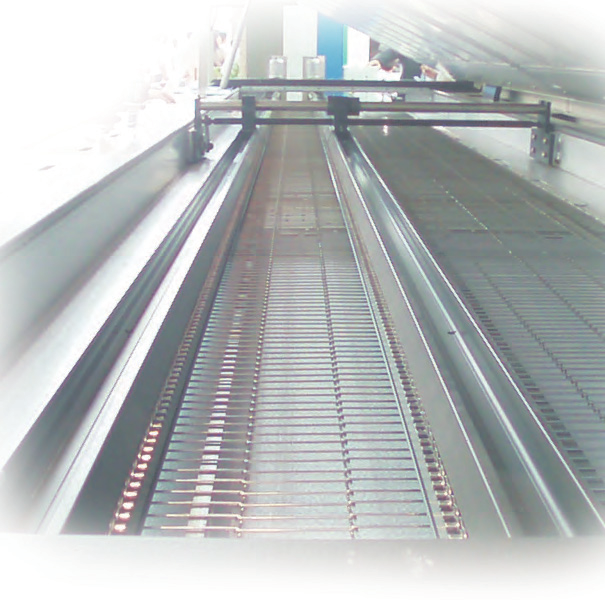

Product views and analysis output
