Process Measurement

ESAMBER instruments for measurable solder-process control

Temperature profiling, oven capability, in-oven atmosphere and conveyor diagnostics for electronics manufacturing teams. Tyson Supply Chain North America handles product selection, quotation and support.

Four instruments. Real product imagery. Manufacturer specifications and datasheets.

R32T / Thermal Profiling

R32T Temperature Profiler

温度曲线测试仪

A 32-channel travelling thermal profiler for high-channel-count electronics manufacturing.

01: Up to 32 measurement channels
02: 512,000 total data points
03: ±0.5 ℃ accuracy and 0.1 ℃ resolution
04: Approximately 280 days standby

View specifications and downloads

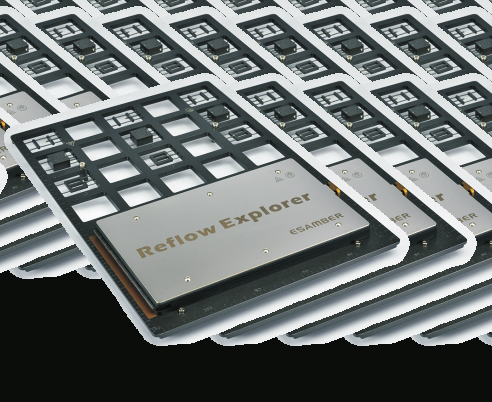

RE5050D / Reflow Oven Evaluation

RE5050D Reflow Explorer

回流焊热学性能评测系统

A 30 + 3 channel platform for quantified reflow-oven thermal performance evaluation.

01: 30 temperature channels plus 3 expansion channels
02: Full oven evaluation in about 15 minutes
03: Multi-axis CPK analysis
04: ERES analysis software

View specifications and downloads

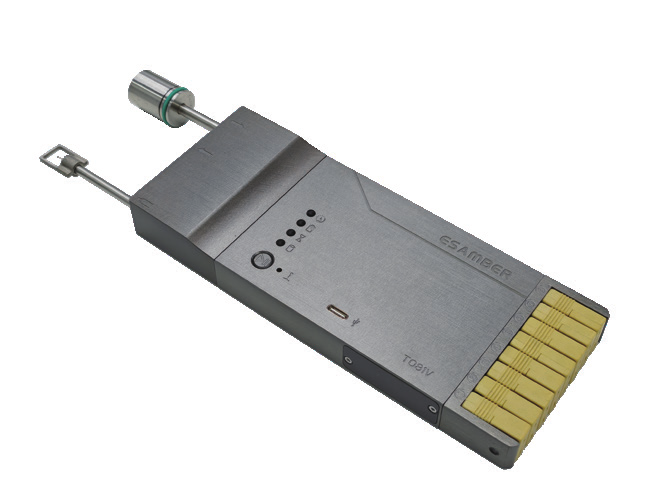

TO81V / In-Oven Atmosphere Analysis

TO81V Residual Oxygen Analyzer

精密炉内残氧 & 环境分析仪

An in-oven analyser that records oxygen, temperature and rail vibration on one time axis.

01: 0 to 10,000 ppm oxygen range
02: Zirconia oxygen sensor
03: T90 response under 30 seconds
04: Temperature, oxygen and vibration in one pass

View specifications and downloads

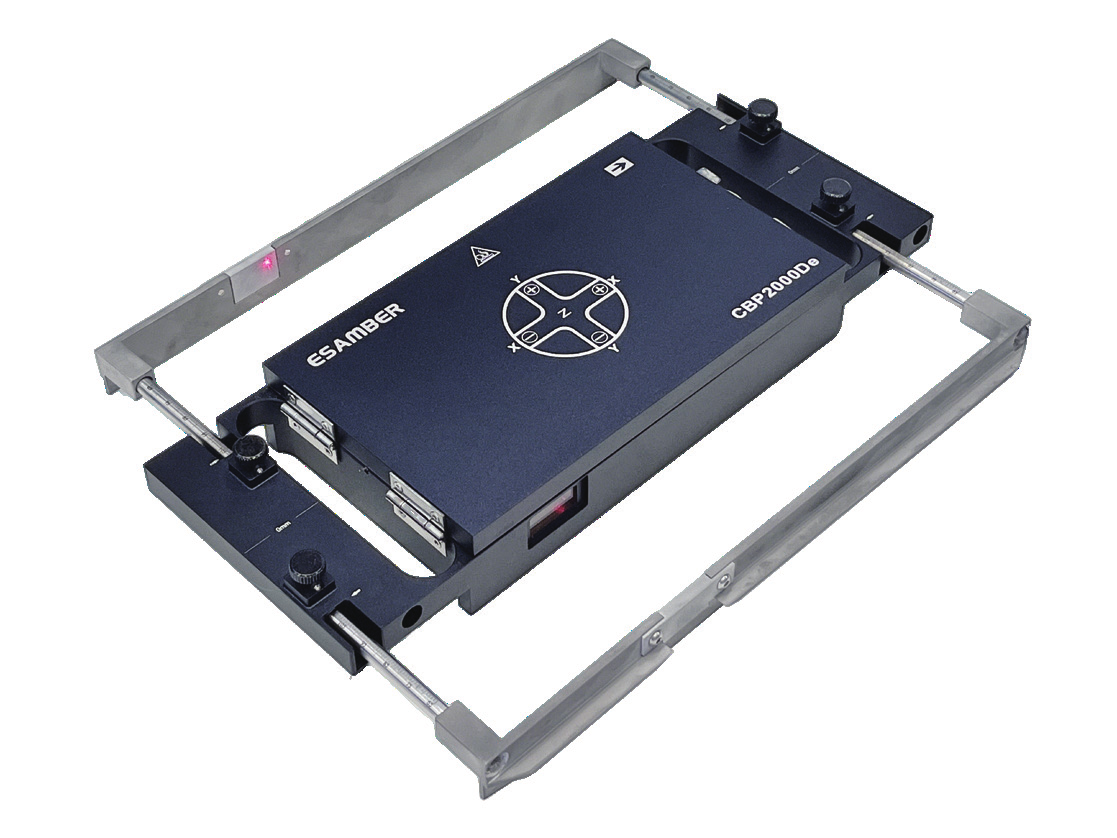

CBP2000De / Conveyor and Rail Evaluation

CBP2000De Conveyor Performance System

焊炉轨道性能评测系统

An in-production system for solder-oven conveyor and rail geometry, vibration and temperature.

01: No production-line stoppage
02: ±0.2 mm deformation accuracy
03: ±2g XYZ vibration range
04: Reflow and wave-solder compatibility

View specifications and downloads
