ESAMBER Process Measurement
Model R32T
R32T Temperature Profiler
温度曲线测试仪

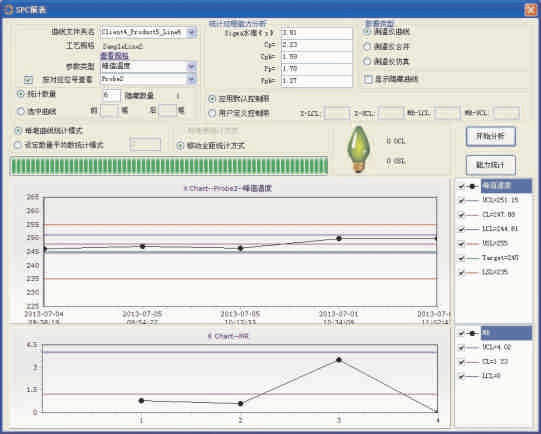

R32T captures complete reflow and wave-solder temperature profiles, then turns the measured curves into tolerance, SPC, CPK and process-capability analysis in ESA Profiler software.
Direct email: sales@tysonsupplychain.com
Key capabilities
- 01Up to 32 measurement channels
- 02512,000 total data points
- 03±0.5 ℃ accuracy and 0.1 ℃ resolution
- 04Approximately 280 days standby
Applications
- 01Server and industrial-control assemblies
- 02Reflow and wave-solder profiling
- 03SPC and CPK process validation
- 04High-channel-count thermal studies
Technical specifications
- Channels
- 32 (6 / 8 / 10 / 12 / 16 / 20 / 24 / 32 selectable)
- Sampling rate
- 0.1 to 400 s, adjustable
- Measuring range
- -100 to 800 ℃
- Resolution
- 0.1 ℃
- Accuracy
- ±0.5 ℃
- Memory
- 16,000 points per channel, 512,000 total
- Data interface
- USB 2.0
- Thermocouple
- Type K
- Dimensions
- 264 × 60 × 20 mm
- Standby
- Approximately 280 days
Specifications are based on the manufacturer datasheet and may change without notice.

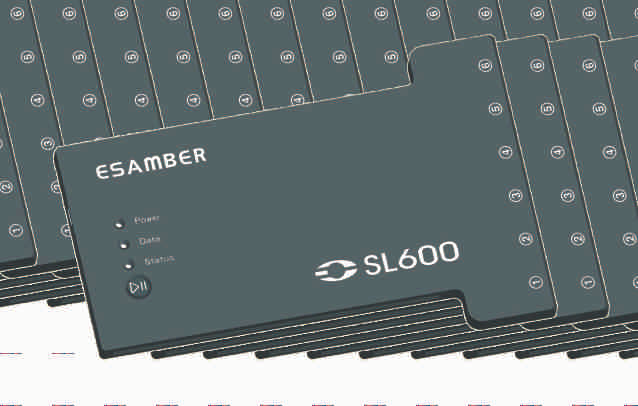

Product views and analysis output
