ESAMBER Process Measurement
Model RE5050D
RE5050D Reflow Explorer
回流焊热学性能评测系统
RE5050D evaluates oven uniformity, symmetry, thermal shock, convection strength, chain temperature and empty-versus-full-load performance. ERES software converts the measurements into a quantified oven score and CPK analysis.
Direct email: sales@tysonsupplychain.com
Key capabilities
- 0130 temperature channels plus 3 expansion channels
- 02Full oven evaluation in about 15 minutes
- 03Multi-axis CPK analysis
- 04ERES analysis software
Applications
- 01New-oven acceptance testing
- 02Periodic oven capability checks
- 03Empty-versus-full-load comparison
- 04Convection and chain-speed analysis
Technical specifications
- Dimensions
- 530 × 500 × 31.5 mm
- Channels
- 30 temperature recording + 3 expansion
- Thermocouple
- Type K
- Measuring range
- 0 to 350 ℃
- Sampling rate
- 0.1 to 400 s, adjustable
- Accuracy
- ±0.5 ℃
- Resolution
- 0.1 ℃
- Data interface
- USB 2.0
- Software
- ERES analysis software
- OS
- Windows 7 / 8 / 10 / 11
Specifications are based on the manufacturer datasheet and may change without notice.

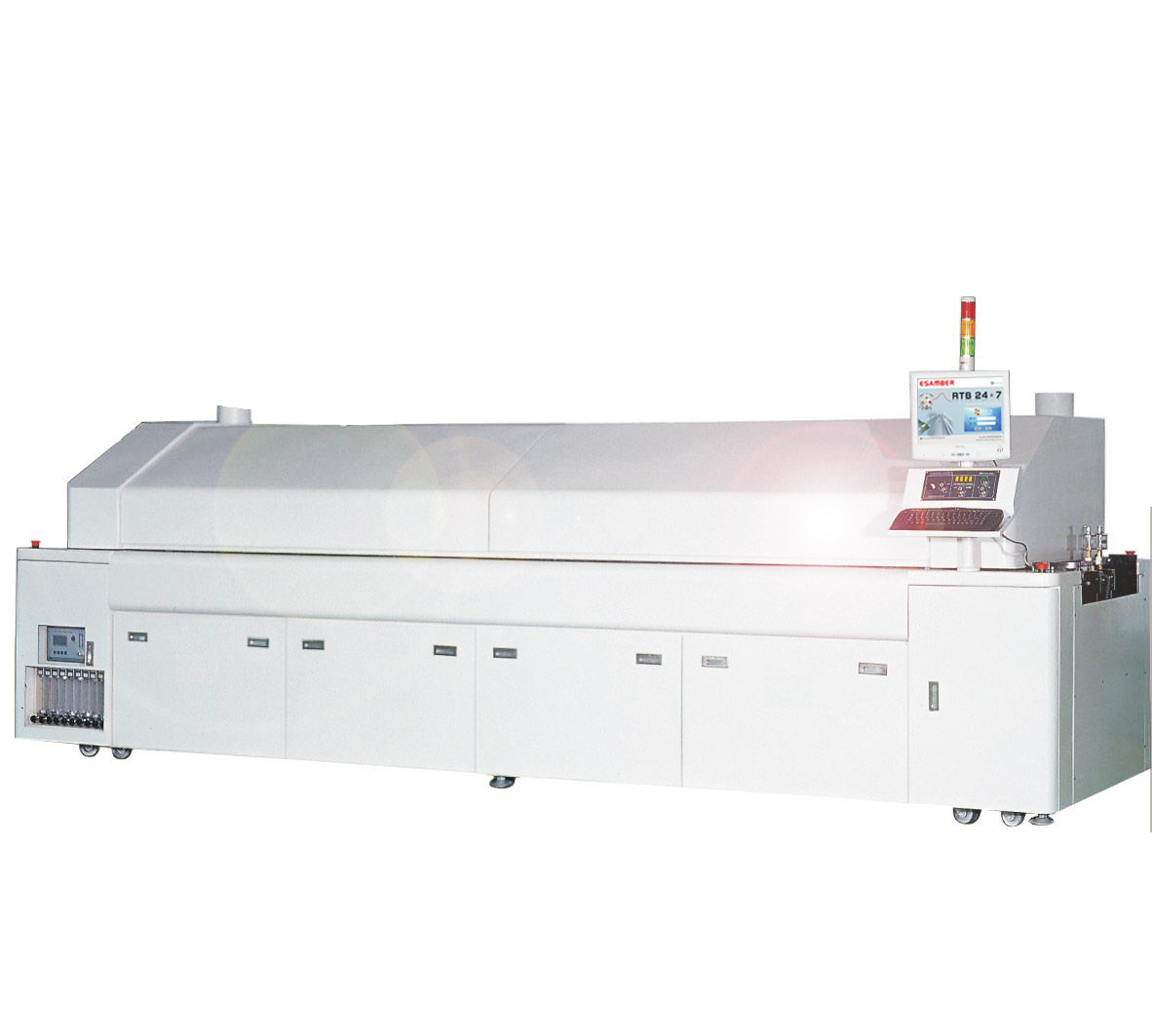

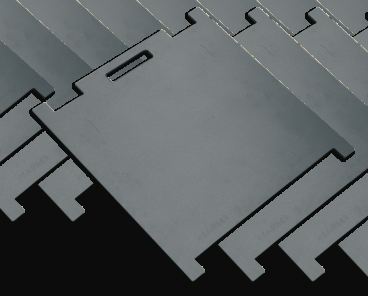

Product views and analysis output
