ESAMBER Process Measurement
Model TO81V
TO81V Residual Oxygen Analyzer
精密炉内残氧 & 环境分析仪
TO81V travels with the PCB through the oven. Its zirconia oxygen sensor and Type-K thermocouple capture the actual atmosphere in each zone to support defect analysis, nitrogen control and process optimisation.
Direct email: sales@tysonsupplychain.com
Key capabilities
- 010 to 10,000 ppm oxygen range
- 02Zirconia oxygen sensor
- 03T90 response under 30 seconds
- 04Temperature, oxygen and vibration in one pass
Applications
- 01Nitrogen-atmosphere optimisation
- 02Solder-defect root-cause analysis
- 03Per-zone oxygen verification
- 04Process traceability
Technical specifications
- Sensor
- Zirconia oxygen sensor / Type-K thermocouple
- Measuring range
- 0 to 10,000 ppm / -100 to 480 ℃
- Oxygen accuracy
- 0 to 99 ppm ±10 ppm; 100 to 10,000 ppm ±2.5% F.S.
- Sampling rate
- 0.1 to 10.0 s, settable
- T90 response time
- Under 30 s
- Dimensions
- 60 × 205 × 17 mm; approximately 950 g
- Battery life
- Approximately 60 minutes
- Charging interface
- USB Type-C 5V/2A
- Communication
- USB
Specifications are based on the manufacturer datasheet and may change without notice.

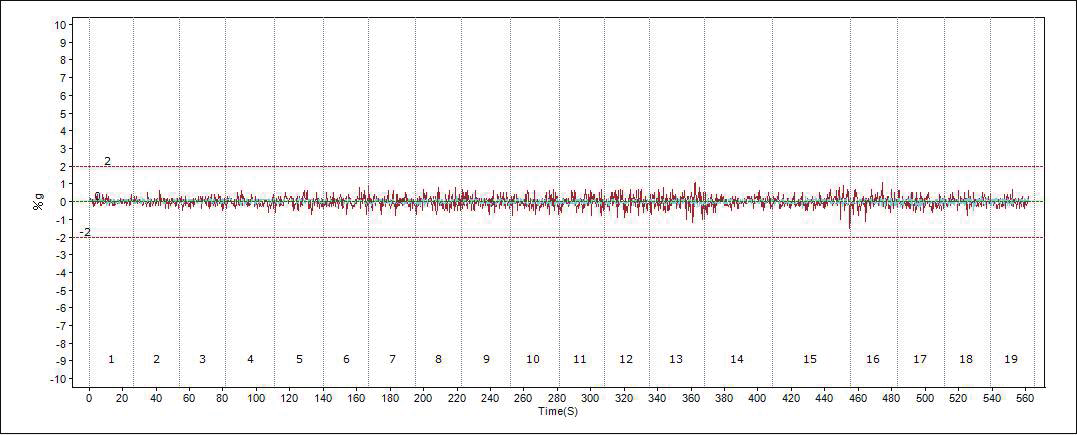

Product views and analysis output
